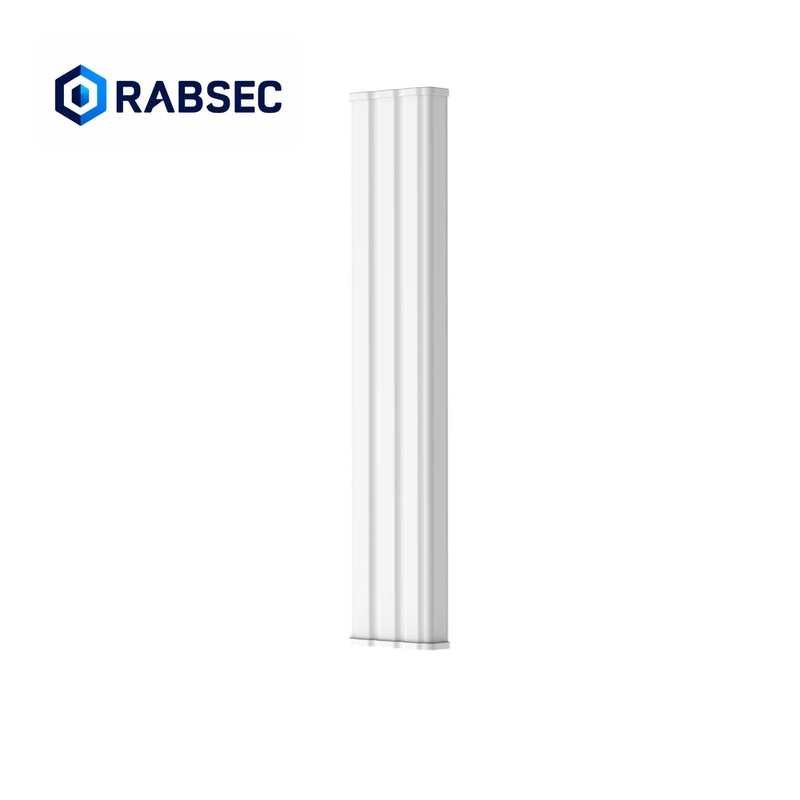

RUIJIE RG-ANT20S-90 - ANTENNA

The Ruijie Reyee RG‑ANT20S‑90 is a high‑gain 5 GHz sector antenna engineered for long‑range wireless coverage, point‑to‑multipoint deployments, and professional outdoor networking scenarios. Designed for use with the Ruijie AirMetro series wireless bridges, it delivers exceptional performance for WISP networks, CCTV backbones, industrial sites, city roads, and large outdoor surveillance environments. With a powerful 20 dBi gain and a wide 90° horizontal beam, the RG‑ANT20S‑90 provides stable, focused coverage ideal for long‑distance PTMP links up to 10 km.

Featuring a 2×2 MIMO panel antenna, the RG‑ANT20S‑90 offers a 90° horizontal and 7° vertical radiation pattern, ensuring strong directional performance and reliable throughput for multiple connected CPE devices. This makes it an excellent choice for high‑density outdoor deployments where consistent signal strength and long‑range reliability are essential. The antenna integrates seamlessly with AirMetro base stations, enabling installers to build scalable wireless networks with up to 32 PTMP links per base station.

Designed for harsh outdoor environments, the RG‑ANT20S‑90 features an IP55 weatherproof enclosure, providing protection against dust, rain, and extreme weather conditions. It is engineered to operate reliably between –40°C and +80°C, making it suitable for exposed installations in industrial zones, rural areas, and high‑temperature environments. The antenna supports operating altitudes from –500 m to +5,000 m, ensuring dependable performance even in mountainous or elevated regions.

The RG‑ANT20S‑90 is built for long‑term durability with a robust MTBF of 400,000 hours, natural cooling, and a strong mechanical design capable of withstanding outdoor stress. It includes a complete mounting kit with uptilt and downtilt brackets, pole clamps, RF cables, and all required hardware, allowing installers to easily adjust elevation angles and optimise coverage for different deployment scenarios.

Measuring 139.9 × 48.9 × 694 mm and weighing 1.82 kg, the antenna offers a slim, professional form factor suitable for pole‑mounted installations. Its elegant white finish blends seamlessly into modern outdoor environments, making it suitable for both commercial and municipal deployments.

The Ruijie Reyee RG‑ANT20S‑90 is a powerful, long‑range, sector‑focused antenna designed to deliver stable, high‑gain performance for outdoor wireless networks. It is an excellent choice for WISP operators, CCTV integrators, and organisations requiring reliable 5 GHz coverage, long‑distance PTMP connectivity, and seamless integration with Ruijie AirMetro wireless bridges.
