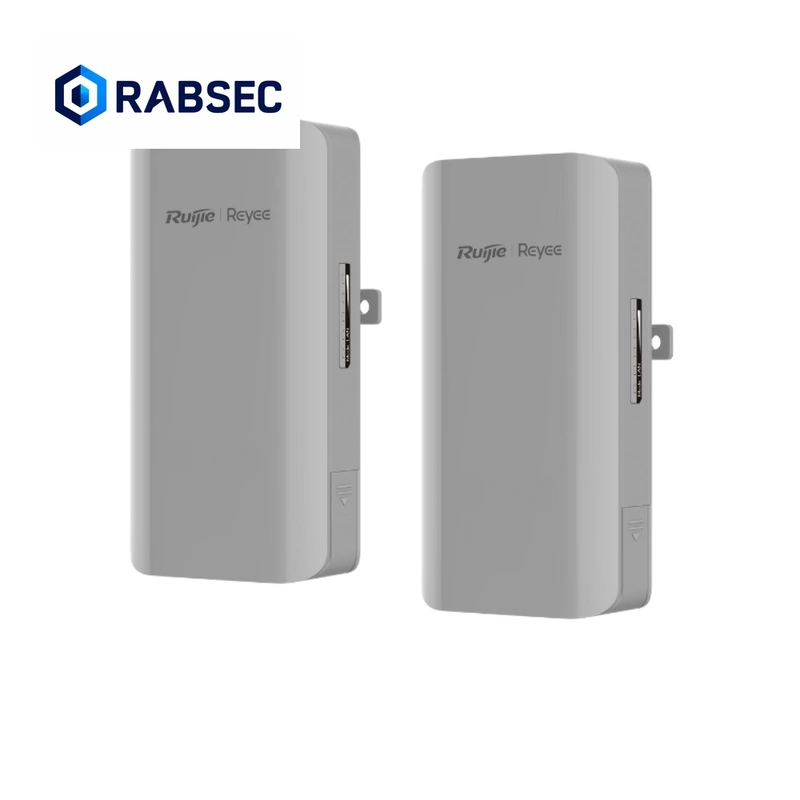

RUIJIE RG-EST310 V2 - 1KM PTP/PTMP (PAIR)

The Ruijie Reyee RG‑EST310 V2 is a high‑performance 5 GHz wireless bridge engineered for long‑distance CCTV transmission, elevator shafts, campus networks, and building‑to‑building connectivity. Designed for stability, simplicity, and real‑time data delivery, it provides a reliable point‑to‑point or point‑to‑multipoint wireless link up to 1 km, making it ideal for surveillance networks and environments where cabling is difficult or costly.

Featuring a 5 GHz 2×2 MIMO radio with 802.11ac (Wi‑Fi 5) support, the RG‑EST310 V2 delivers a maximum wireless data rate of 867 Mbps, ensuring smooth video transmission for high‑resolution IP cameras. Real‑world performance testing shows throughput of 90 Mbps at 100 m and 80 Mbps at 500 m, enabling stable streaming for multiple CCTV cameras over long distances. Its 10 dBi directional antenna with a 60° horizontal and 30° vertical beam provides strong signal focus and long‑range reliability, making it ideal for outdoor surveillance links.

The RG‑EST310 V2 is designed for effortless deployment. Units are factory‑paired, allowing installers to set up the bridge without complex alignment or configuration. Auto‑rebridge functionality ensures the link automatically restores after power interruptions. Visual LED indicators for signal strength and system status simplify alignment and troubleshooting. The device integrates seamlessly with Ruijie Cloud, enabling remote monitoring, statistics, and maintenance — allowing installers and administrators to manage wireless links without needing to visit the site.

Built for harsh environments, the RG‑EST310 V2 features an IP54 weatherproof enclosure and operates reliably between –30°C and +55°C, making it suitable for outdoor mounting, elevator shafts, and industrial locations. It supports 24 V passive PoE input and 12 V DC local power, offering flexible installation options. With a maximum power consumption of under 7 W, the device is highly energy‑efficient. Surge protection includes ±4 kV common‑mode and ±2 kV differential‑mode, ensuring resilience against electrical spikes.

The RG‑EST310 V2 is compact and robust, measuring 147 × 76 × 37 mm and weighing 0.35 kg, making it easy to mount on walls or poles. It includes one 10/100 Mbps LAN port, reset button, system LED, Ethernet LEDs, and three signal strength indicators for quick diagnostics. With an MTBF of 400,000 hours, the device is engineered for long‑term reliability in mission‑critical deployments.

The Ruijie Reyee RG‑EST310 V2 is a powerful, long‑range, surveillance‑optimised wireless bridge that delivers stable performance, effortless deployment, and strong environmental durability. It is an excellent choice for CCTV networks, elevator installations, campus links, and any scenario requiring a reliable wireless connection up to 1 km.
