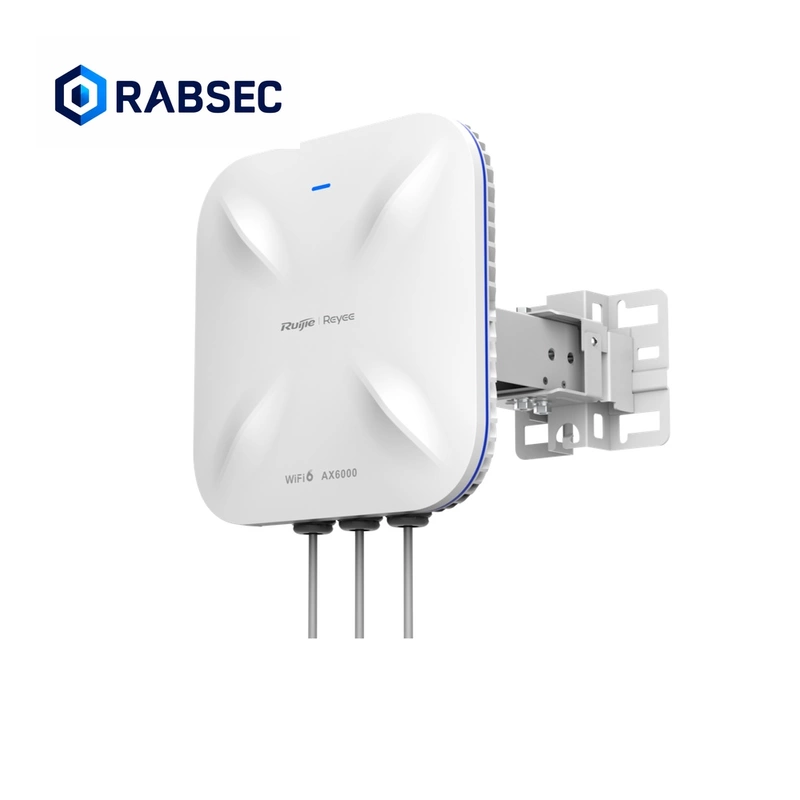

RUIJIE RG-RAP6260(H)-D - WIFI 6 6000 MBPS ACCESS POINT

The Ruijie Reyee RG‑RAP6260(H)-D is a premium Wi‑Fi 6 AX6000 high‑density directional outdoor access point engineered for ultra‑fast, long‑range and highly reliable wireless connectivity in demanding outdoor environments. Designed with a rugged IP68‑rated enclosure and high‑gain directional antennas, it delivers exceptional performance for point‑to‑point, point‑to‑multipoint and focused‑coverage outdoor deployments — making it ideal for stadiums, campuses, industrial parks, resorts, transportation hubs, plazas and large commercial outdoor spaces.

Powered by advanced 802.11ax (Wi‑Fi 6) technology, the RG‑RAP6260(H)-D delivers a combined wireless throughput of 5952 Mbps, including 4804 Mbps on the 5 GHz band and 1148 Mbps on 2.4 GHz. Its dual‑radio 4×4 MU‑MIMO architecture provides eight spatial streams, enabling efficient communication with large numbers of clients simultaneously and dramatically improving network responsiveness in high‑density outdoor environments.

Unlike the omni‑directional RG‑RAP6260(H), the RG‑RAP6260(H)-D features 8 built‑in directional high‑gain antennas, delivering 10 dBi gain on 2.4 GHz and 9 dBi gain on 5 GHz for focused, long‑distance coverage. This directional design enables maximum Wi‑Fi reach of up to 1 km in ideal conditions — significantly extending coverage compared to standard outdoor APs and making it ideal for long‑range bridging, outdoor corridors, campus links and targeted coverage zones.

Engineered for extreme reliability, the RG‑RAP6260(H)-D features IP68 weatherproof protection, ±4 kV lightning protection, flame‑retardant materials and an operating temperature range of –40°C to +65°C, ensuring stable performance in harsh weather conditions including rain, dust, humidity, heat and cold.

To support long‑distance outdoor networking, the RG‑RAP6260(H)-D includes both a 2.5 Gbps Ethernet uplink port and a Gigabit SFP optical port, enabling fiber backhaul for extended deployments up to 20 km using single‑mode fiber. This makes it ideal for remote sites, distributed campuses and long‑range point‑to‑point or point‑to‑multipoint networks.

The RG‑RAP6260(H)-D integrates seamlessly with the Ruijie Cloud Management Platform, offering centralised configuration, remote monitoring, wireless optimisation, cloud portal authentication and effortless multi‑AP deployment. Advanced features include OFDMA, 1024‑QAM, 160 MHz channel width, Layer‑2/Layer‑3 roaming, 802.11k/v/r, DFS radar detection, load balancing, RSSI‑based client control, and automatic cloud‑based RF optimisation — ensuring stable, secure and professionally managed outdoor Wi‑Fi.

Security is enterprise‑grade, with support for WPA‑PSK, WPA2‑PSK, WPA/WPA2‑PSK, blacklist/whitelist controls and frequency‑hopping mechanisms for DFS compliance. The device supports up to 512 clients, with 130 recommended for optimal performance — ideal for stadiums, public venues, outdoor hospitality, retail exteriors and multi‑AP mesh deployments.

Perfect for stadiums, campuses, industrial parks, resorts, transportation hubs, plazas and long‑range outdoor commercial deployments, the RG‑RAP6260(H)-D combines AX6000 performance, directional long‑range coverage, multi‑gigabit uplink capability and rugged IP68 durability. It stands as one of the most powerful and advanced outdoor Wi‑Fi 6 directional access points in the Reyee lineup, delivering exceptional speed, stability and cloud‑based simplicity for modern outdoor networks.
