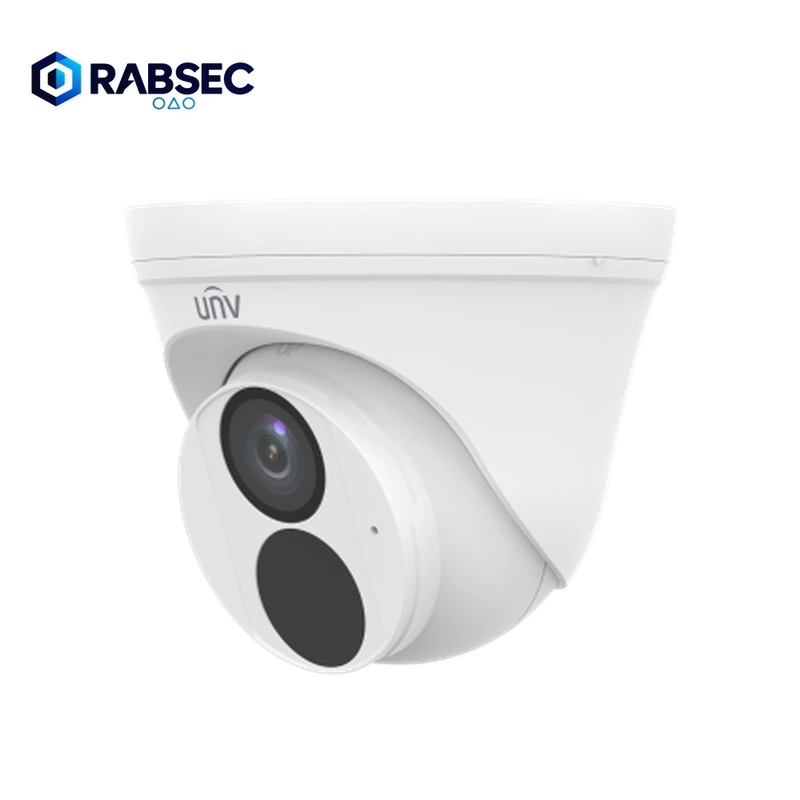

UNV IPC3612LB-ADF28K-H – TURRET CAMERA (2MP, MIC, WDR)

The Uniview IPC3612LB‑ADF28K‑H is a compact, high‑performance 2MP IR turret camera designed for professional CCTV installations requiring excellent low‑light performance, strong WDR capability, and reliable outdoor durability. Part of Uniview’s EasyBasic Series, it delivers crisp 1080p video, advanced smart detection features, and robust environmental protection, making it ideal for homes, retail stores, offices, warehouses, and general commercial surveillance.

Equipped with a 1/2.8" progressive‑scan CMOS sensor, the camera captures high‑quality 2MP (1920×1080) video at 30fps, ensuring smooth, detailed footage suitable for both live monitoring and recording. It supports multiple compression formats including Ultra 265, H.265, H.264, and MJPEG, significantly reducing bandwidth and storage requirements while maintaining excellent image clarity. The camera’s 120 dB true WDR technology ensures balanced exposure in challenging lighting conditions, allowing clear visibility in scenes with strong backlight or high contrast.

The IPC3612LB‑ADF28K‑H features a 2.8 mm fixed lens with a wide 112.9° horizontal field of view, providing broad coverage ideal for indoor rooms, entrances, and open areas. DORI performance is strong, with detection distances up to 42 m, observation at 16.8 m, recognition at 8.4 m, and identification at 4.2 m, supporting accurate situational awareness across various surveillance scenarios. Smart IR technology delivers up to 30 m (98 ft) of infrared illumination, ensuring clear night‑time imaging with reduced overexposure.

The camera includes a full suite of intelligent detection features such as motion detection, ultra‑motion detection, tampering alarm, audio detection, cross‑line detection, and intrusion detection (human‑body‑based). These analytics enhance security monitoring and reduce false alarms. Additional image‑enhancement functions include 2D/3D DNR, digital defog, BLC, HLC, and flexible image orientation options including 90°/180° rotation.

Audio support is built‑in, with an integrated microphone and G.711U/G.711A encoding for clear audio capture. The camera supports edge storage via MicroSD cards up to 512 GB, enabling local recording even during network interruptions. Network features include ANR, NAS (NFS), and full protocol support such as IPv4, RTSP, RTMP, HTTPS, QoS, SNMP, and ONVIF Profiles S/G/T, ensuring broad compatibility with NVRs and VMS platforms.

Designed for durability, the IPC3612LB‑ADF28K‑H features an IP67 weatherproof rating, protecting against dust, rain, and harsh outdoor conditions. Its 3‑axis adjustment (pan 0–360°, tilt 0–80°, rotate 0–360°) allows flexible installation on walls or ceilings. The camera supports PoE (802.3af) for simple single‑cable installation and consumes minimal power. With a minimum illumination of 0.01 Lux (colour) and 0 Lux with IR, it performs reliably in low‑light environments.

The Uniview IPC3612LB‑ADF28K‑H is a versatile, reliable, and feature‑rich 2MP turret camera that delivers excellent image quality, strong WDR performance, intelligent detection, and robust environmental protection. It is an ideal choice for residential, commercial, and small‑to‑medium business surveillance requiring dependable day‑and‑night monitoring with modern smart features.
