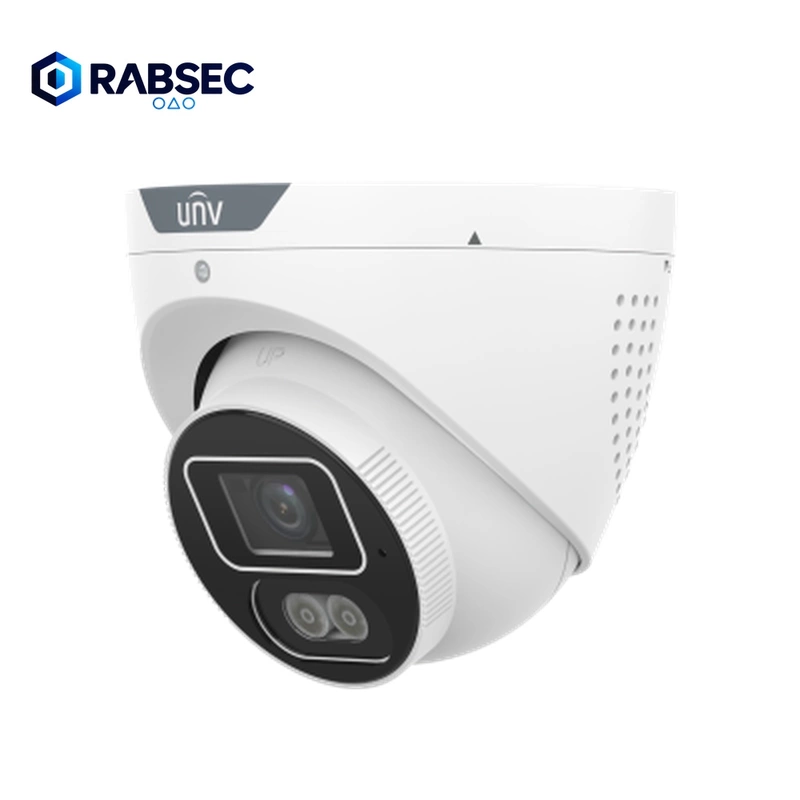

The Uniview IPC3614SB‑ADF28KMC‑I1 is a high‑performance 4MP Tri‑Guard turret camera designed for professional CCTV installations requiring full‑colour night imaging, active deterrence, advanced AI analytics, and robust outdoor durability. Part of Uniview’s Prime I Series, it combines ColorHunter, Wise‑ISP, dual‑light illumination, and audible warning technologies to deliver superior security performance in residential, commercial, and industrial environments. It is ideal for car parks, forecourts, warehouses, retail stores, gated entrances, and any site requiring proactive intrusion detection and real‑time deterrence.
Powered by a 1/2.9" 4MP CMOS sensor, the camera records crisp 2688×1520 video at 30fps, with additional resolutions including 2560×1440, 2304×1296, and 1080p. It supports Ultra 265, H.265, H.264, and MJPEG compression, dramatically reducing bandwidth and storage requirements while maintaining excellent clarity. Uniview’s ColorHunter with Wise‑ISP ensures 24‑hour full‑colour imaging, even in extremely low‑light scenes, while 130 dB true WDR delivers balanced exposure in strong backlight conditions.
The IPC3614SB‑ADF28KMC‑I1 features a 2.8 mm fixed lens with a wide 101.1° horizontal field of view, ideal for entrances, driveways, indoor rooms, and general‑purpose coverage. DORI performance is strong, with detection up to 63 m, observation at 25.2 m, recognition at 12.6 m, and identification at 6.3 m, supporting accurate situational awareness across various surveillance scenarios.
A standout feature of this model is its Tri‑Guard dual‑light system, combining:
Smart IR up to 30 m for traditional night‑vision.
Warm‑light LED up to 30 m for full‑colour night imaging.
Active audible warning via a built‑in speaker for real‑time deterrence. Both IR and warm‑light modes support automatic or manual control, enabling installers to tailor night‑time behaviour to the environment.
The camera includes advanced AI‑powered intelligent perimeter protection, including cross‑line detection, intrusion detection, enter/leave area detection, and target classification for humans, vehicles, and non‑motorised vehicles. This significantly reduces false alarms caused by animals, foliage, or lighting changes. It also supports people flow counting and crowd density monitoring, making it suitable for commercial and public‑space analytics.
Additional image‑enhancement functions include 2D/3D DNR, digital defog, BLC, HLC, corridor mode (9:16), and flexible image rotation options. The camera supports triple‑streaming, ROI, privacy masks, and U‑Code for enhanced compression efficiency.
Audio capability is fully integrated, with both a microphone and speaker supporting two‑way audio, enabling real‑time communication, warnings, and deterrence. Audio is encoded using G.711U/G.711A.
The camera supports edge storage via MicroSD cards up to 512 GB, ensuring local recording even during network interruptions. Network features include ANR, NAS (NFS), and full protocol support such as IPv4/IPv6, RTSP, RTMP, HTTPS, QoS, SNMP, and ONVIF Profiles S/G/T, ensuring broad compatibility with NVRs and VMS platforms.
Designed for durability, the IPC3614SB‑ADF28KMC‑I1 features an IP67 weatherproof rating, protecting against dust, rain, and harsh outdoor conditions. Its 3‑axis adjustment (pan 0–360°, tilt 0–80°, rotate 0–360°) allows flexible installation on walls or ceilings. The camera supports PoE (802.3af) and operates reliably between –30°C and +60°C, making it suitable for both indoor and outdoor environments.
The Uniview IPC3614SB‑ADF28KMC‑I1 is a powerful, proactive, and feature‑rich 4MP Tri‑Guard turret camera that delivers outstanding colour imaging, intelligent detection, active deterrence, and robust environmental protection. It is an excellent choice for residential, commercial, and industrial surveillance requiring dependable day‑and‑night monitoring with advanced AI and full‑colour capability.
