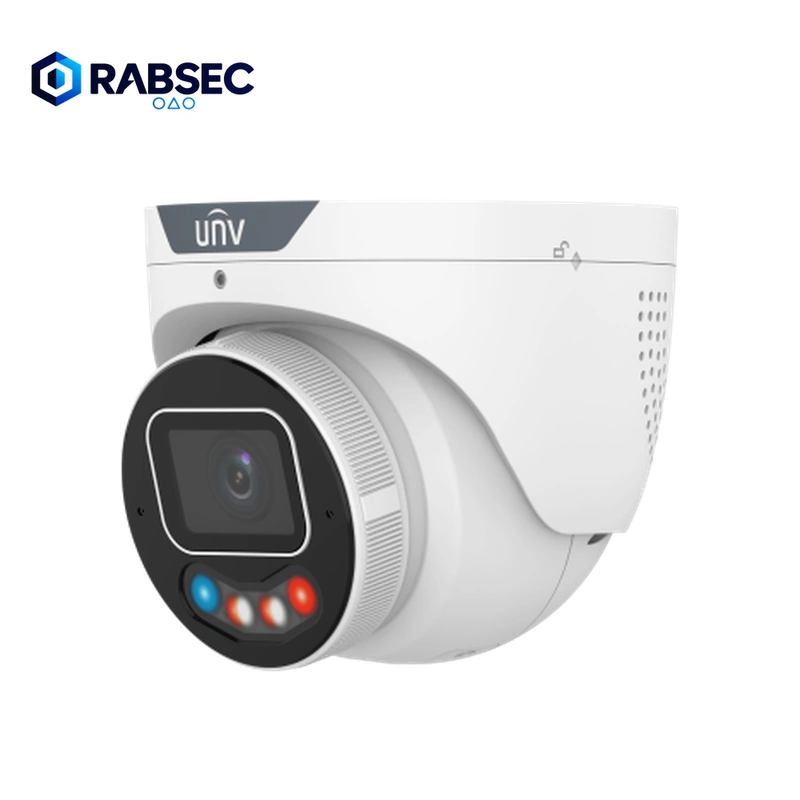

The Uniview IPC3634SE‑ADF28KMC‑WP‑I1 is a premium 4MP Tri‑Guard turret camera engineered for high‑security environments requiring full‑colour night imaging, active deterrence, advanced AI analytics, and extreme outdoor durability. Part of Uniview’s OwlView Plus Series, it combines ColorHunter, Wise‑ISP, dual‑light illumination, dual microphones, a built‑in speaker, and IK10 vandal resistance to deliver exceptional performance in residential, commercial, industrial, and public‑space surveillance. It is ideal for car parks, forecourts, warehouses, retail stores, gated entrances, and any site requiring proactive intrusion detection and real‑time deterrence.
Powered by a 1/1.8" 4MP CMOS sensor, the camera records crisp 2688×1520 video at 30fps, with additional resolutions including 2560×1440, 2304×1296, and 1080p. It supports Ultra 265, H.265, H.264, and MJPEG compression, dramatically reducing bandwidth and storage requirements while maintaining excellent clarity. Uniview’s ColorHunter with Wise‑ISP ensures 24‑hour full‑colour imaging, even in extremely low‑light scenes, while 130 dB true WDR delivers balanced exposure in strong backlight conditions.
The IPC3634SE‑ADF28KMC‑WP‑I1 features a 2.8 mm fixed F1.0 lens with a wide 111° horizontal field of view, ideal for entrances, driveways, indoor rooms, and general‑purpose coverage. DORI performance is strong, with detection up to 43.4 m, observation at 17.4 m, recognition at 8.7 m, and identification at 4.3 m, supporting accurate situational awareness across various surveillance scenarios.
A standout feature of this model is its Tri‑Guard dual‑light warning system, combining:
Smart IR up to 30 m for traditional night‑vision.
Warm‑light LED up to 30 m for full‑colour night imaging.
Built‑in speaker + dual microphones for active audible warnings and two‑way communication. Both IR and warm‑light modes support automatic or manual control, enabling installers to tailor night‑time behaviour to the environment.
The camera includes advanced AI‑powered intelligent perimeter protection, including cross‑line detection, intrusion detection, enter/leave area detection, and target classification for humans, vehicles, and non‑motorised vehicles. This significantly reduces false alarms caused by animals, foliage, or lighting changes. It also supports people flow counting, crowd density monitoring, color‑based retrieval, and Auto Scene Match (ASM) for optimal image tuning.
Additional image‑enhancement functions include 2D/3D DNR, digital defog, BLC, HLC, corridor mode (9:16), and flexible image rotation options. The camera supports triple‑streaming, ROI, privacy masks, and U‑Code for enhanced compression efficiency.
Audio capability is fully integrated, with dual microphones and a built‑in speaker, enabling real‑time communication, warnings, and deterrence. The camera supports alarm I/O (1/1) and audio I/O (1/1) for expanded integration.
The camera supports edge storage via MicroSD cards up to 512 GB, ensuring local recording even during network interruptions. Network features include ANR, NAS (NFS), and full protocol support such as IPv4/IPv6, RTSP, RTMP, HTTPS, QoS, SNMP, and ONVIF Profiles S/G/T, ensuring broad compatibility with NVRs and VMS platforms.
Designed for extreme durability, the IPC3634SE‑ADF28KMC‑WP‑I1 features IK10 vandal resistance, NEMA 4X, and IP67 weatherproof protection, safeguarding against impact, dust, rain, and harsh outdoor conditions. Its 3‑axis adjustment (pan 0–360°, tilt 0–75°, rotate 0–360°) allows flexible installation on walls or ceilings. The camera supports PoE (802.3af) and operates reliably between –30°C and +60°C, making it suitable for both indoor and outdoor environments.
The Uniview IPC3634SE‑ADF28KMC‑WP‑I1 is a powerful, proactive, and feature‑rich 4MP Tri‑Guard turret camera that delivers outstanding colour imaging, intelligent detection, active deterrence, and extreme environmental protection. It is an excellent choice for residential, commercial, and industrial surveillance requiring dependable day‑and‑night monitoring with advanced AI and full‑colour capability.
